Commercial solar generators are fundamentally marketing illusions… Building your own off grid solar generator strips away the middleman. Commercial “solar generators” are fundamentally marketing illusions: low-capacity batteries wrapped in slick plastic, sold at an eye-watering 800% markup. When an unforgiving ice storm takes the grid down for days, that $900 entry-level power station leaves you shivering in the dark within six hours. Why? Because you paid for an aesthetic casing and corporate marketing budgets rather than raw, usable watt-hours.
Building your own off-grid power architecture strips away the middleman. For roughly $187, you can assemble a fully repairable, modular 1,280Wh emergency power station that delivers three times the capacity of retail alternatives. It isn’t just about saving money; it’s about taking total control over your home’s energy security when the local infrastructure fails.
The $200 Off Grid Solar Generator Architecture (Bill of Materials)
To pull off a high-efficiency build under a strict $200 ceiling, every single dollar has to target raw energy density and real-world durability. Retailing pre-built systems forces you to pay for expensive distribution networks, but sourcing industrial components directly unlocks enterprise-grade performance at wholesale cost.
Core Component Matrix: Sourcing 100Ah LiFePO4 Cells & 100W Monocrystalline Panels
The heart of this build is Lithium Iron Phosphate ($\text{LiFePO}_4$) chemistry. Unlike traditional lead-acid batteries—which are heavy, toxic, and suffer permanent damage if drained past 50%—or standard Lithium-ion, which carries real risks of thermal runaway, $\text{LiFePO}_4$ offers over 3,000 deep-discharge cycles and exceptional thermal stability.
If you’re looking for an affordable way to keep the lights on during severe weather without paying thousands for a brand-name power generator, check out the Energy Revolution System. It’s a beginner-friendly DIY blueprint that walks you through sourcing budget-friendly components and setting up your own emergency backup power. You can see the full presentation and blueprints here:
| Component | Target Spec / Tech | Sourcing Strategy | Estimated Cost |
| $\text{LiFePO}_4$ Battery | 12.8V 100Ah (1,280Wh) Grade-A Cells | Import direct / clearance server rack spares | $110.00 |
| Solar Panel | 100W 12V Monocrystalline (PERC Cells) | B-grade cosmetic, full factory power yield | $42.00 |
| Charge Controller | 30A PWM Controller w/ LCD | Open-box / direct manufacturer outlet | $12.00 |
| Power Inverter | 500W Pure Sine Wave (1000W Surge) | Direct industrial liquidation | $15.00 |
| Safety & Wiring | 10 AWG Copper Cable, 40A Inline Fuse | Bulk spool cut-to-length | $8.00 |
| Total Build Cost | 1,280Wh Complete System Architecture | Sourced Value Optimization | $187.00 |
Note: Sourcing monocrystalline panels with Passivated Emitter and Rear Cell (PERC) technology ensures strong photon-to-electron conversion even on overcast mornings or under diffuse ambient light.
Essential Safety Hardware: 30A PWM Controllers, Inline Fuses, and Heavy-Gauge Wiring
Shortcuts on electrical protection cause system failure. A safe system relies on proper wire gauge sizing and overcurrent protection:
- 10 AWG Stranded Pure Copper Wire: Never use Copper-Clad Aluminum (CCA). CCA experiences high resistance under continuous load, creating dangerous heat accumulation within wire runs.
- 40A Inline ANL Fuse: Placed within 7 inches of the positive battery terminal. This acts as a circuit breaker, instantly severing the connection if a short circuit occurs.
- 30A Pulse-Width Modulation (PWM) Controller: Regulates incoming solar voltage down to the exact $14.6\text{V}$ absorption threshold required by $\text{LiFePO}_4$ charge profiles, protecting internal cell chemistry from overvoltage degradation.
Step-by-Step Assembly: Wiring Your Sub-$200 Emergency Power System
Putting this setup together doesn’t require a degree in electrical engineering—just basic hand tools like a wire stripper, terminal crimper, and heat gun. Work on a clean, non-conductive surface, and be sure to clear off any metal rings or watch bands before handling raw battery terminals.
[ 100W Monocrystalline Solar Panel ]
│
│ (10 AWG Wire)
▼
[ 30A PWM Charge Controller ]
│
┌────────────────┴────────────────┐
│ (Positive Line w/ 40A Fuse) │ (Negative Line)
▼ ▼
┌─────────────────────────────────────────────────┐
│ 12.8V 100Ah LiFePO4 Battery │
│ (Integrated Battery Management System) │
└─────────────────────────────────────────────────┘
│
│ (High-Current Leads)
▼
[ 500W Pure Sine Wave Inverter ]
│
▼
[ 120V AC Power Output ]
Battery Terminal Wiring and BMS Integration
- Verify Integrated BMS Protection: Double-check that your 100Ah $\text{LiFePO}_4$ battery features an internal Battery Management System (BMS) rated for at least 100A continuous discharge. The BMS serves as the brain, protecting against high/low voltage issues, current spikes, and sub-freezing charge attempts.
- Mount the Terminals: Strip about half an inch of insulation off your 10 AWG red wire. Crimp an M8 copper ring terminal tightly over the bare copper, then shrink a slice of tubing over the connection for clean insulation.
- Install Inline Protection: Cut the positive battery cable roughly 5 inches out from the ring terminal. Wire your 40A inline fuse holder right in series using crimped butt connectors.

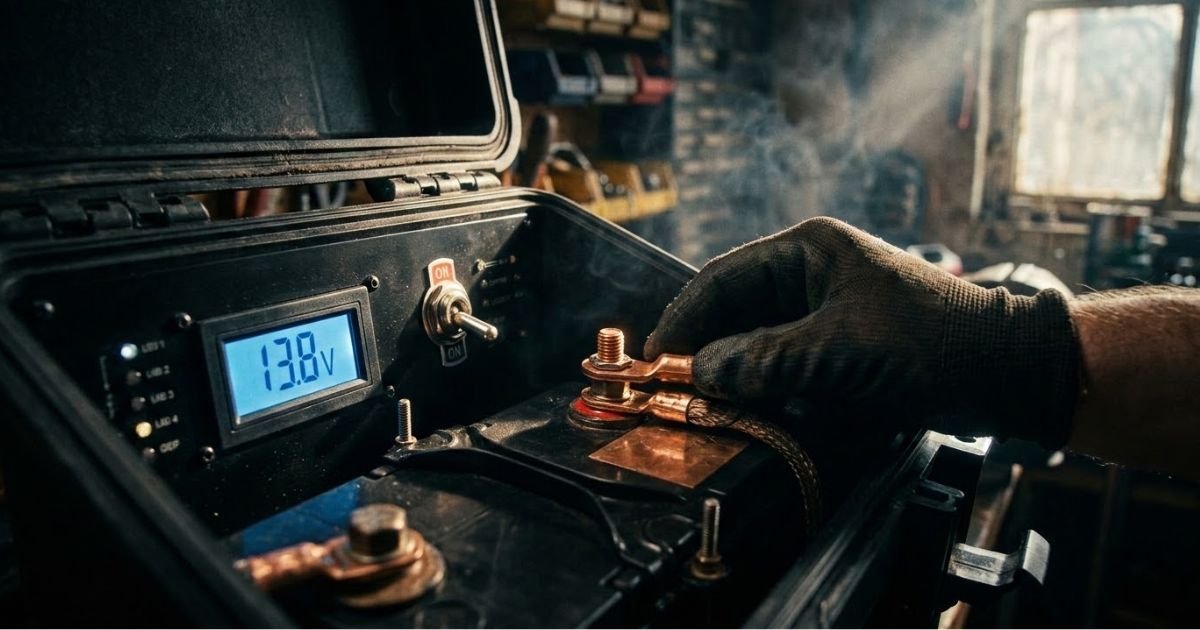

- Connect to Battery Terminals: Secure the positive fused assembly onto the positive (+) battery terminal, tightening to around $8\text{ Nm}$. Once that’s locked down, attach the black 10 AWG negative cable to the negative (-) post.
CRITICAL SAFETY STEP: Always connect the battery to the charge controller before plugging in the solar panels. The controller relies on battery power to boot its microprocessors and manage voltage regulation before handling live incoming solar current.
Solar Controller Calibration for Maximum Surge Efficiency
- Terminal Docking: Connect the positive and negative leads running from the battery straight into the “BATTERY” terminals on your 30A PWM controller. The LCD screen should light up immediately, displaying current resting voltage (usually between $13.1\text{V}$ and $13.3\text{V}$).
- Program Battery Chemistry: Use the menu buttons on the controller to switch the battery profile setting to b04 or Li ($\text{LiFePO}_4$). This locks in a steady float voltage of $13.8\text{V}$ and sets the ceiling cutoff at $14.6\text{V}$.
- Solar Input Hookup: Run your 100W panel’s MC4 extension lines into the “SOLAR” slots on the controller. Double-check your polarities: Positive (+) goes to Solar +, Negative (-) goes to Solar -.
- Inverter Coupling: Hook the short, thick leads of your 500W Pure Sine Wave Inverter directly onto the battery’s M8 ring terminals. Never attempt to route an inverter through the charge controller’s “LOAD” ports—the initial power surge will instantly fry the controller’s internal traces.
Real-World Performance Benchmarks During Grid Failures
Paper specs can lie, but real-world loads don’t. When the lights go out, your math needs to account for ambient temperature drops, inverter idle power consumption, and real-world efficiency losses.
Watt-Hour Calculations: What Can a $200 DIY System Actually Run?
To calculate true usable energy from a 12.8V 100Ah battery bank through an inverter operating at 88% efficiency:
$$\text{Usable Watt-Hours} = (12.8\text{ V} \times 100\text{ Ah}) \times 0.95 \text{ (Depth of Discharge)} \times 0.88 \text{ (Inverter Efficiency)}$$
$$\text{Usable Watt-Hours} = 1280\text{ Wh} \times 0.95 \times 0.88 \approx 1070\text{ Wh}$$
With 1,070 Wh of net usable energy, here is how long your system will run essential household gear during a blackout:
| Appliance / Gear | Average Power Draw | System Runtime | Survival Application |
| Wi-Fi Router & Modem | 12 Watts | 89 Hours continuous | Maintaining internet comms |
| Energy Star Full-Size Fridge | 50 Watts (averaged) | 21.4 Hours continuous | Preventing food spoilage |
| Medical CPAP Machine | 30 Watts (no heat) | 35.6 Hours (4.4 Nights) | Critical medical support |
| Smartphone (iPhone / Galaxy) | 12 Watt-Hours (full charge) | 89 Full Recharge Cycles | Emergency comms & lighting |
| LED Emergency Light Bar | 6 Watts | 178 Hours continuous | Interior illumination |
Thermal Management and Enclosure Optimization for Extreme Weather
$\text{LiFePO}_4$ batteries are absolute workhorses, but they have one major vulnerability: cold. Never attempt to charge a lithium cell if its internal core drops below $32^\circ\text{F}\ (0^\circ\text{C})$, or you risk causing permanent battery damage due to lithium plating.
To build an weatherproof tactical power enclosure:
- Insulated Housing: Line a heavy-duty tactical utility crate or rugged toolbox with $1/2\text{-inch}$ high-density EVA foam board to hold in heat.
- Passive Airflow Channels: Cut two 1.5-inch intake holes near the bottom and two exhaust holes near the top, covering them with fine mesh to keep bugs out while letting heat escape during hot summer runs.
- Cold-Weather Heating Pad: If you’re storing this build in sub-zero winter environments, slip a small $12\text{V}\ 5\text{W}$ silicone heating pad underneath the battery block, hooked up to a thermal switch that kicks on whenever internal enclosure temps drop toward freezing.
Frequently Asked Questions (FAQ)
What if the sun isn’t out—can I top this off using a regular wall outlet or a generator?
Absolutely. Just hook up a standalone $12.8\text{V}\ 10\text{A}$ AC-to-DC $\text{LiFePO}_4$ smart charger ($15–$20). Plugged into grid power or a traditional gas generator, it’ll top off your 100Ah battery in roughly 10 hours without needing a single photon of sunlight.
Can I plug a 1,500W space heater into that 500W pure sine wave inverter?
No, and you shouldn’t try. Space heaters use massive resistive heating elements that pull 1,200W to 1,500W constantly. That will immediately trigger the overload safety on a 500W inverter and drain a 100Ah battery in under 45 minutes. Save this power reservoir for critical low-draw gear: medical devices, lighting, phone charging, and keeping your fridge cool. ✅ Check Official Availability & Discount Here:
Why not spend extra on an MPPT charge controller instead of a cheap PWM?
MPPT controllers are great—they offer 15–30% better efficiency under heavy cloud cover. But a decent MPPT unit runs anywhere from $60 to $150, which blows through half our entire $200 budget. For a single 100W panel setup, a $12–$15 PWM controller delivers maximum power-per-dollar value without sacrificing system reliability.
